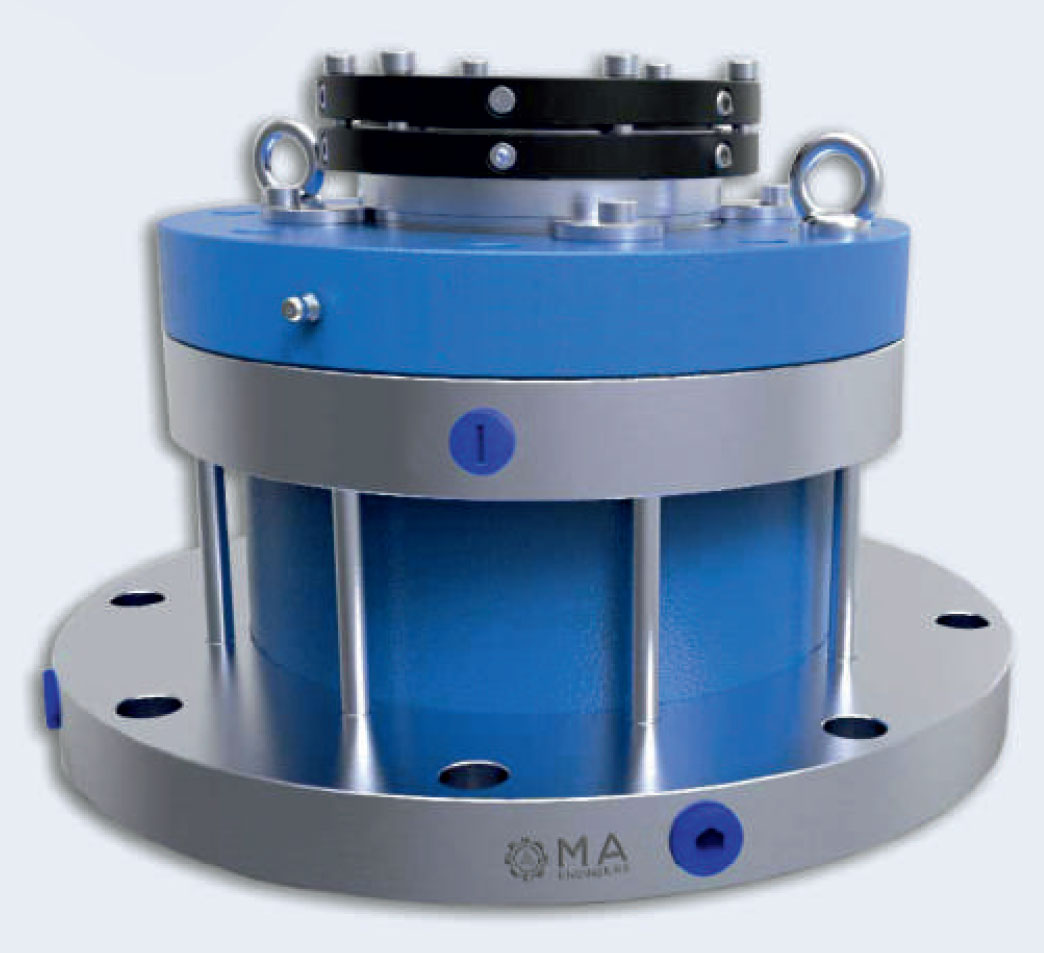

Type MA141
Agitator Seal
Seal Face: Carbon and Sic. Vs Sic, and TC
Secondary Seals: Viton / PTFE/TTV/FKM
Metal Parts: SS-304, SS-316
Shaft Diameter: 25mm to 150mm
Pressure: 10 Bars (Max)
Temperature: (-)30C to (+) 150C
Speed: 300 RPM (MAX)
General chemicals and its vapours, Food products, Pharmaceuticals Products, Light Hydrocarbon and its vapours, Petrochemicals and its vapours.
Agitator Mechanical Seal design incorporates bearing located very close to the seal. This standard feature effectively arrests the shaft whip for smooth and trouble free operation enabling enhanced seal life. The cooling jacket, also a standard feature, helps to maintain cool environment around the seal. Large clearance between rotating shaft/sleeve and mating ring permits higher deflection of the shaft, invariably associated with Top Entry Agitators.
